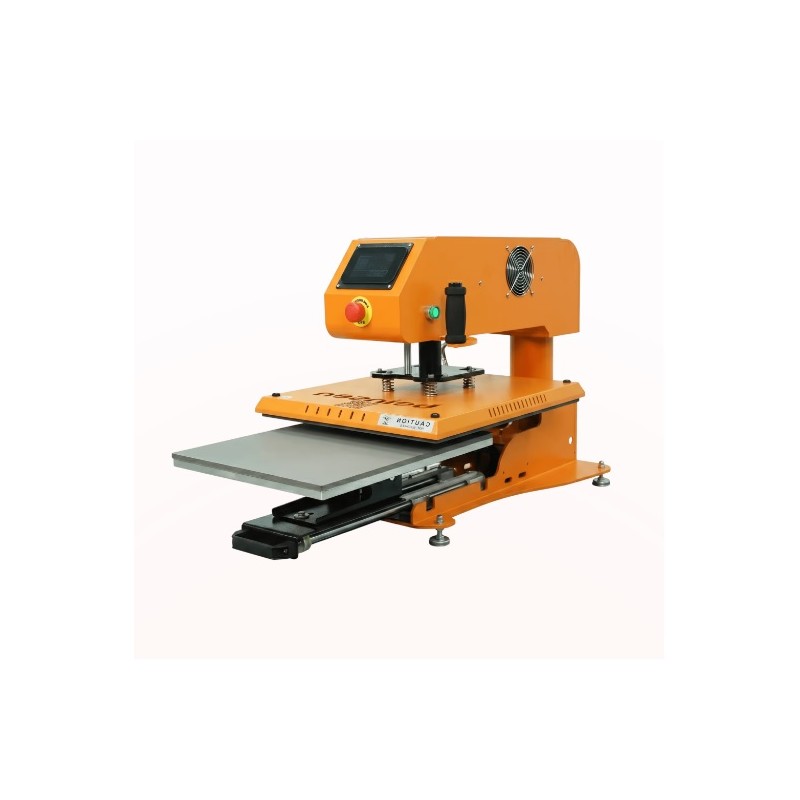

Istanbul Electric Swing-Away Press

Istanbul Electric Swing-Away Press — Benefits & Specifications

Overview
Estambul is a professional-grade electric swing-away heat press with a touchscreen controller. Its 180° swing-away opening system maximizes your workspace and makes loading/unloading materials easy, while advanced safety systems — anti-pinch protection, two-hand operation, and two-stage programming — make it as powerful as it is safe.

Key Benefits

• 180° swing-away opening for greater comfort — the rotating upper plate maximizes workspace, letting you load and unload materials with total ease while reducing fatigue on long shifts
• Smart anti-pinch protection — intelligent sensors detect obstructions and immediately stop and raise the heating plate, protecting both operator and material at all times
• Two-hand operation for greater safety — the ergonomic design requires simultaneous presses on both controls to activate the press, eliminating any chance of accidental activation
• Two-stage transfer programming — includes preprogrammed preheat and transfer cycles to remove moisture and set designs perfectly; preheat can be skipped to speed things up with dry materials

• Technical Specifications

  • Press model: Istanbul
  • Press type: Electric, automatic swing-away
  • Plate size: 40×50 cm (16"×20")
  • Lower plate opening: Quick-change and sliding
  • Digital controller: Touchscreen
  • Configuration presets: 3
  • Pressure adjustment: 0–8
  • Production counter: Yes (automatic)
  • Maximum printable thickness: 35 mm
  • Emergency stop button: Yes
  • Voltage: 120V / 220V
  • Power: 1.8 kW (120V) / 2 kW (220V)
  • Timer: 0–999 sec.
  • Maximum temperature: 225 °C
  • Packaging dimensions: 95×58×82 cm
  • Net weight: 95 kg
  • Gross weight: 132.5 kg
